Automatic duplex slitter

group name: Duplex Slitter

Min Order: 1 piece

brand name: Hengli, SUMIKURA

model: HL-YC640

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CIF

Acceptable payment methods: T/T, L/C

Export mode: Have the independent export and import right

update time: Thu, 21 Nov 2024 16:37:34 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

For can-making company to vertically and horizontally slit tinplate precisely.

Detailed

For can-making company to vertically and horizontally slit tinplate precisely. It equipped with Mitsubishi electric control components, YUKEN hydraulic components and NSK bearings. It is a necessary corollary equipment of high speed resistance welding machine.

Name & Model	HL-YC640 Automatic Duplex slitter
Use	For can-making company to slit tinplate precisely. It is a necessary corollary equipment of high speed resistance welding machine.
Characteristics	Equipped with Siemens electric control components and NSK bearings. The knives are made of entire carbide.
Technical parameters	1）Max slitting dimension: 1200mm × 1200mm
	2）Min slitting dimension: 600mm × 600mm
	3）Slitting thickness: 0.12-0.50mm
	4）Slitting speed: 30SPM
	5）Slitting diagonal tolerance: ≤0.05mm
	6）Max 1^st slitting quantity: 6 strips
	7）Max 2^nd slitting quantity: 18 blanks
	8）Power consumption: 12 Kw

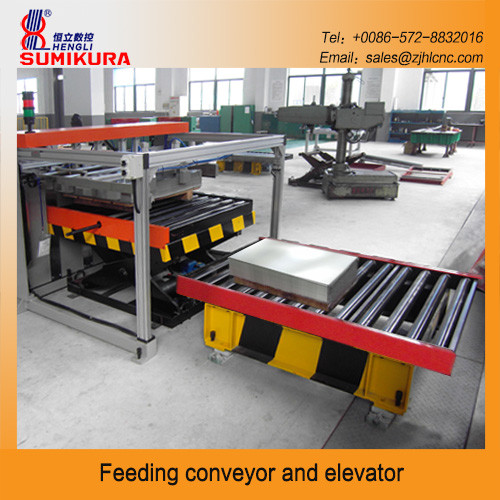

Feeding converor and elevator

Vacuum sucker feeding device

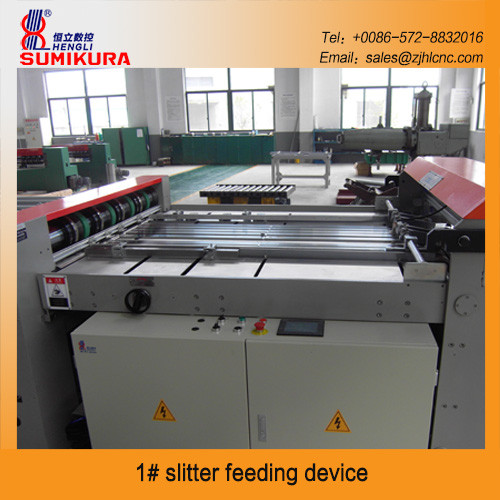

1# slitter feeding device

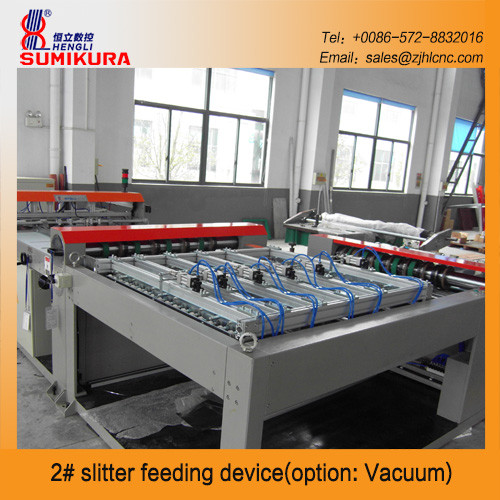

2# slitter feeding device

Belt feeding device

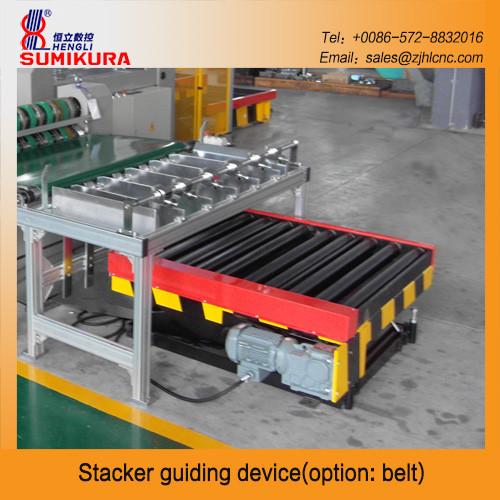

Stacaer guiding deveic

* The above specifications/parameters are only for reference. Practical parameters should be subject to the contract.
